John Barboni, Co-Founder, is featured in South Africa’s Top Billing Magazine and primetime television segment as one of New York City’s top creative forces to discuss elemental and sustainable architecture.
Justine Cottrell writes:

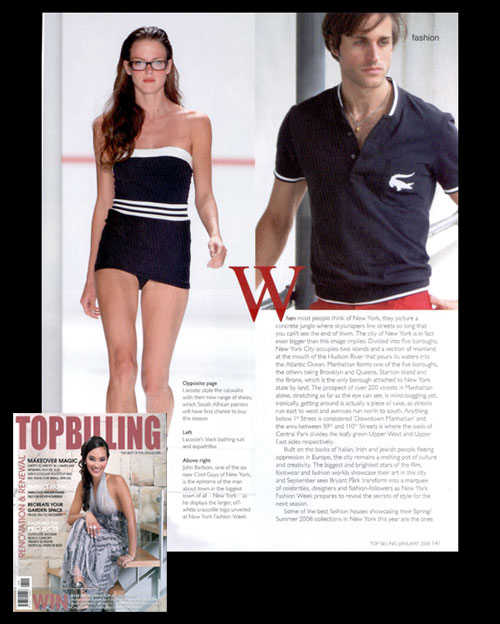

Each year at New York Fashion Week Lacoste selects 6 men to be part of a photo shoot where they are dressed in the new season of Lacoste. These guys are dubbed The Cool Guys of New York. They are successful, powerful men with presence and ambition and their own senses of style. They are the modern men who demonstrate the same qualities as those of Rene Lacoste. They pay attention to detail, invest in quality, and have a tendency to buck the trend.
It’s clear to find the inspiration needed for all this flavourful fashion on the very streets of New York. In a country like South Africa the key word among creative industry professionals is exposure. Big budgets are obliterated at high class events in Johannesburg and Cape Town while in New York owners of restaurants, clubs and bars are trying to hide their locations in order to preserve their cosy and exclusive atmospheres.
It’s these spots that the genuine, native New Yorker frequents. Hidden down a dark street behind a roughly nailed door and a thick velvet curtain, Milk and Honey is a bar like this. Here John Barboni co-founder of Elemental Architecture reclines in a cushioned booth in dusty lamplight and a waiter who looks like something out of the Rat-Pack, hands him a cocktail which he says is called a “Dark and Stormy”.
With 2 partners, one of whom he calls his greatest mentor, John specializes in what New Yorkers term Green Architecture, “the method of designing buildings that work in conjunction with natural forces for daylighting, ventilation, water and shelter instead of trying to draw power from natural resources and in turn depleting them. As opposed to sheltering yourself form the environment, we draw inspiration and knowledge from the architects of the pre-industrial era and ask how we can work with nature to be comfortable and fulfil our modern requirements,” he says.
With New York constantly under construction and development John is at the heart of architecture’s progressive elite who seek to make their buildings sustainable through a poetic assimilation of building techniques that ensure as little damage to the environment as possible. “In my opinion architects have made the mistake of building first and then trying to make that building green. I believe that green buildings, like nature, need to be organic, they need to be conceptualised with green at heart from the very beginning” he says. Having grown up in California and spending time in both Italy and France, John moves easily in front of the camera for Lacoste’s shoot. It’s clear that though his buildings may be green they certainly don’t compromise on aesthetic.
Print Magazine selects elemental as among the best brand and identity developments of 2007 and is included in Print’s Regional Design Annual for New York City. The name and brand identity were developed, incorporating the golden mean, Helvetica typeface, and monochromatic presentation, as informed by a minimalist aesthetic. The primary brand colors – black and white – reference cosmic polarity and equilibrium manifested in light and dark, day and night, life and death, self-destruction and self-preservation, and other opposites. Work was completed in collaboration with Camillia BenBassat.
John Barboni, co-founder, is featured in November issue of Men’s Uno Hong Kong fashion magazine where he discusses architecture, sustainability and elemental.
Architect George Post’s neo-gothic confection at City College “would be almost impossible to conceive of today,” says architect Carl Stein, who recently completed a two-decade restoration that uses modern technology and materials while remaining faithful to Post’s artistic vision. The University celebrated the centennial of Post’s collection of buildings in 2007.
We tend to think of indigenous Sardinian construction as robust and direct although not particularly refined. This is due in large part to the widely published images of nuraghi, the stone towers that gave name to the Nuragic Era which spanned from about 1800 to 535 BCE. It is believed that at one time there were as many as 20,000 of these constructions of massive, roughly hewn volcanic stone. Their simple geometric forms are iconic in the natural landscape. Of the approximately 7,000 that have survived, many are sufficiently intact to be experienced as buildings.
There is, however, another archetypal form of masonry from the Nuragic Era. This is the precisely cut stonework of the pozzi saccri (sacred wells).Examples include the limestone remains at Perfugas and the reassembled pozzo at the Santa Cristina archeological site, about 115 kilometers from Cagliari. Here, the carefully finished blocks of stone, many non-orthogonal, generate complex geometry both in volume and surface. Built around 1000 BCE, the well itself and the walls that establish its precinct define a construction vocabulary that can be seen in Sardinian architecture for the following 2,000 years; that is emphasizing symbolic building elements by contrasting their high level of finish against a rough background. This may be seen not only in the ceremonial buildings such as churches and tombs, but also in the details of vernacular building. While this device is not unique to Sardinian architecture, there are few other places where a 3,000 year continuum is so clearly seen.
Images 1, 2 Nuraghe, Santa Sarbana
Images 3-5 Nuraghe, Santu Antine
Image 6 Sacred Well, Perfugas
Images 7-15 Sacred Well, Santa Cristina (Image 14, Aperture at top of Tholos – well chamber)
Images 16, 17 Necropolis (cave tombs), Sant Andrea Priu
Image 18 Santa Sarbana
Images 19, 20 Ss Trinita di Saccargia
Image 21 Santa Maria Regno in Andara
Image 22 Duomo di San Nicolo, Sassari
Image 23 Santa Catarina, Sassari
Image 24 Decorated entry, Perfugas
Following up on our previous post: On October 1st, the Bohemian National Hall , at 321 East 73rd Street will host an afternoon and evening devoted to Mies van der Rohe’s recently restored Villa Tugendhat. For those who have not had the chance to visit Brno in the past eight months, here is an opportunity to get some sense of this remarkable work of architecture. Iveta Cerana, Director of the Villa Tugendhat, offers unique historical and cultural perspectives on this Modern monument.
The work of Mies van der Rohe is often viewed as being exercises in purist geometry, dry and mathematical.
The work of Mies van der Rohe is often viewed as being exercises in purist geometry, dry and mathematical. A May 2012 visit to newly restored Villa Tugendhat in Brno, Czech Republic, most easily recognized from its west façade (image 1) with its precise and controlled layering, as seen in Mondrian paintings (image 2), Mies’ European work is also deeply involved with the transparency, reflectivity and ambiguity of Moholy-Nagy. (image 3, 4, 5, 6,7) This is in addition to the unmistakable concern with the architecture of material and construction (Materiality) (image 8) which has been discussed with clarity and detail by Professor Ivo Hammer in several articles; or the effect of the understated entry (image 9) that begins the experiential drama resolving in the remarkable public spaces. Since the 1970’s and before, there have been efforts in architectural and social criticism to discredit Modernism as simplistic and bland, cold and antihuman. Experiencing Villa Tugendhat, as well as Modern icons such as Villa Savoye (image 10) and the Barcelona Pavilion (image 11) totally contradicts these claims.
Reflections on the Artist: Costantino Nivola. A collection of images from Carl Stein’s recent presentation at the Italian Embassy in Washington DC
It’s not possible to describe Costantino Nivola – Tino – in a few paragraphs or a few pages. His art as well as the sum total of his life have far too much range and depth. Rather than making a futile attempt at comprehensive inclusion, I will try to add texture to his accumulative portrait by sharing some personal recollections drawn from more than thirty-five years of knowing Tino as a mentor, a colleague and a friend.
I think I was nine or ten when my parents first brought me to visit the Nivola family in The Springs on Long Island. While I’m not sure of the exact year, I do have evidence that by 1956, when Tino was working on studies for a large multi-panel sand-cast relief for the Grady High School in Brooklyn – one of his early collaborations with my father Richard Stein, I, as a thirteen-year-old, was already hanging around with my most-prized possession, an inexpensive Japanese knockoff of a Rolleicord. Interestingly, not only is this image of Tino, standing by the maquette of the Grady relief one of the few early photographs of mine that has survived, the maquette in the photograph was in my possession until a few years ago when I gave it to a young colleague who is fortunate enough to have a loft large enough to display it properly. It is still there, having been passed from Tino to my father to me and then to him.
An unintended although quite relevant reading of the photograph might be that of a dual portrait, a diptych – Tino and friend, and might speak of the equivalency between the artist and the art. The image of Tino conveys an overarching sense is of immediacy and connection, intense and complex. The art is somewhat more aloof, the figure being a representation of idealized humankind, an iconic graphic. Yet within the structure of the grand figure there are pictograms of more mundane events, suggesting that integral to the conceptualized essence of the primary figure are daily human activities; and that these activities are not only essential to basic existence but are the undertones and overtones that flesh out a fully engaged life. Looking back to the artist, underlying, or perhaps emerging from the immediately apparent warmth and passion is transcendental dignity and intellect. Micro and macro, macro and micro.
Any discussion of twentieth century art must clearly distinguish between narrative subject on the one hand, and conceptual subject and formal structure on the other. The narrative for Tino’s work almost always involved the human experience, and throughout his career, this narrative oscillated between the micro and macro perspectives. In many works including the figures for the Piazza Satta and the Combined Police/Fire Facility in New York City, subtle representations of daily activity imply a grandeur far beyond that of either the scale or literal reading of the narrative. In others, such as Grady relief, the primary formal theme speaks of elemental human dignity, yet with footnotes addressing events that give human life warmth and color. The choice of one point of view or the other was never one of absolutes nor did it follow any particular time line. Consider, for example, the similarities in perspective between the Masculine Figures from the mid-1950’s and the Feminine Figures from the early 1980’s, or between the Piazza Satta figures from 1966 and the Combined Police/Fire Facility figures from 1984.
Between 1954 and 1971, Tino and my father collaborated on a number of projects –playgrounds including Stephen Wise Houses in Manhattan and PS 55 in Staten Island, a building which also incorporated four large concrete reliefs integrated into the facades; other schools such as IS 183 in the Bronx; and public spaces, in particular the Piazza Sabastiano Satta in Sardinia. During this period, I was going to school, eventually getting my architectural degree from The Cooper Union, and then working for Marcel Breuer.
In 1971, I joined my father’s firm. One of my earliest assignments was working with Tino on the architectural components of the memorial to Antonio Gramsci (unbuilt). The project consisted of three figures, approximately life-size, populating and open-topped room whose walls and floors were to be blocks of local stone. The front wall incorporating the single opening into the space and the back wall sloped away from the front. This created an inherently unstable condition at the top of the entry. The solution was to add walls on either side of the entry, parallel to the side walls creating a short, narrow passageway whose ceiling – the underside of the front wall – sloped sharply upward. I remember Tino’s delight at the tightly controlled views and the spatial fluctuations that resulted. His interest was not only in the objects, the sculptures themselves, but in the experience of encountering them and the contextual message inherent in the enclosure for the Gramsci figures. The lesson of the experiential power of entry, for architecture as well as for art, was not lost on me.
Following this were the ongoing activities involving Tino, my father and myself dealing with the completion of various commissions including the large sculpted concrete pieces for IS 183. There were also many lunches when Tino came to the office to discuss some aspect or other of the works in progress, but for ten years, there were no new commissioned collaborations.
In 1981, I got a phone call from Tino asking whether, for a few months, during the mid-week, he could use the guestroom in the house in Greenwich Village where my wife, daughter and I live. He was working on a series of paintings of New York and wanted to spend time sketching the city. We, of course, said yes and for a number of months, Tino would arrive on Monday or Tuesday and stay until Thursday or Friday. Some evenings he would go out for dinner but more often, we all ate together. On a few special occasions Tino cooked, preparing his own variations on Sardinian cuisine. Even more memorable than the food was the conversation. One evening, Tino pulled out some drawings of lower Fifth Avenue, looking south toward the Flatiron Building. The view included a number of the late nineteenth century loft buildings that lined the street. The drawings stressed the horizontal lines of the column capitals about fifteen feet above street level, implying a plane parallel to the street but overhead. The pedestrian zone became a strongly felt volume bounded by the buildings, the sidewalk and the new surface suggested by the capitals. Tino remarked that Le Corbusier had frequently said that most new architecture failed to use the weight of the building to define the ground.
By this time, I had become a partner with my father. In early 1982, we received a commission to design a new Combined Police/Fire Facility on East 67th Street in Manhattan for which I was the partner-in-charge. The project was to incorporate the facades of two freestanding Victorian buildings which would be restored as part of the work, and to connect them with new building fabric. The facility, which would provide an entirely new state-of-the-art headquarters for a police precinct, fire company and the Manhattan arson squad, included an allowance for artwork. I proposed to the City that Tino be commissioned for this work, suggesting that something loosely related to his recent New York City drawings serve as the basis. Happily, both the client and Tino accepted, starting what was for me one of the most exciting collaborations of my career. Tino’s plan was to create a set of narrative sculptures speaking to the history and work of the Police and Fire Departments. In the course of my investigations for the restoration of the two facades, I had come across a book called Our Police Protectors published in 1885, contemporaneous with the 1885-6 construction date of the two buildings. The book contained a none-too-accurate drawing of the then under construction precinct station but it also chronicled Police Department work and included a number of etchings showing both nineteenth century police activity and portraits of many of the NYPD officers. These, along with photographs from the museums of the Police and Fire Departments became the narrative subjects for what turned out to be Tino’s last public commission in the United States.
Interestingly, although the pieces that were created for the Combined Facility were envisioned to be “architectural sculpture,” they are more closely related to the figures for the Piazza Satta as well as the “Beach” and “Bed” terra cotta series from the mid-70’s, than to the earlier angular concrete architectural works. Similarly, the large relief of the city is “drawn” with reference to the New York City drawings from 1981-82 as well as the Chicago drawings of 1968, the Citta gremite drawings of 1947 and the Veduta di New York paintings dated 1943-65.
During the first few months of this project, Tino returned to his schedule of spending weekdays in New York City. He and I visited various archives looking for subject material for the works. When a likely image appeared, we would discuss how a sculpture based loosely on the particular image might be incorporated into the architecture. An underlying criterion was to create and present sculpture that conveyed the importance of civic and public commitment while, at the same time, demonstrating that civic action could be incorporated seamlessly into daily life.
Once the raw material was selected, Tino returned to working in his studio in The Springs, creating first a series of sketches and very preliminary maquettes followed by more detailed maquettes. These were presented to and enthusiastically accepted by the clients. Tino then made the final sculptures in terra cotta and sent them to The Modern Art Foundry in Astoria. Because of the size of the relief panels and the complexity of some of the freestanding sculptures, a number of the works were cast in several pieces, to be welded and finished after removal from the molds. Tino oversaw that process as well as the final finishing and application of patina. On several occasions, I accompanied him to the foundry.
In what I remember as being late autumn in 1987 when Tino and I were returning from a visit to the foundry, we were driving down Fifth Avenue giving us a similar perspective to what had been the starting point for the large relief to be installed in the lobby of the police station. Tino reflected somewhat sadly that with all of the pressures of contemporary life, people – or artists – weren’t taking the time to simply gather quietly, enjoying and discussing their work – or perhaps it was that the time just wasn’t there to take. This observation has remained with me for nearly twenty-five years and, when I restructured my office about five years ago, a key organizing principle for my colleagues and me was that it be structured to encourage these discussions, not only to take the additional pleasure from the process but equally to encourage the synergistic growth and development that only comes when working in a strongly-felt creative and intellectual community. That trip to the foundry and the return drive were to be the last project meeting I had with Tino who died the following May.
Due to construction delays and contractor failures, the building did not open until 1991. Working closely with Ruth Nivola, we oversaw the installation of the sculpture. The sculpture at the Combined Facilities along with all the artwork – the bronze, stone and concrete, the large maquette in the left of the 1956 photograph – carry Tino’s creative DNA; however for those of us who had the good fortune to know and work with Tino, there is also the presence of the man – the intense, smiling figure in the right of the photograph, which remains fundamentally undimmed.
1. Much of this material has been extracted and adapted from a project with Giuliana Altea and Antonella Camarda documenting and analyzing the architectural collaborations and unbuilt projects of Costantino Nivola
2. For photographs of sculptures referenced here but not pictured, see Costantino Nivola in Springs, Micaela Martegani, 2003.
3. For copies of drawings and paintings referenced here but not pictured, see Seguo la traccia nera e sottile – I disegni di Costantino Nivola, Giuliana Altea, 2011
Elemental is proud to announce that it’s award-winning historic reconstruction of Shepard Hall at The City College of New York is included in the current exhibition on view at the Center for Architecture in New York City as part of the month-long celebration Archtober. The exhibition explores how critical choices and consumption patterns of professionals and building occupants can make positive energy changes in our cities. Shepard Hall was selected as an exemplar of sustainability in historic reconstruction. his is particularly evident in considering the use of Glass Fiber Reinforced Concrete (GFRC) as the primary reconstruction material, in lieu of other materials.
The project’s 72,000 units of replicated terra cotta – the largest terra cotta replacement project in the world – yields an embodied energy savings by using GFRC of approximately 29,880,000,000 Btu or the equivalent of about 207,000 gallons or about 4,900 barrels of #6 oil when compared with cast stone and approximately 57,600,000,000 Btu – the equivalent of about 400,000 gallons or about 9,500 barrels of #6 oil – when compared with terra cotta.
In addition, in considering just the energy savings in transportation of the much lighter GFRC, the 72,000 units of replicated terra cotta, the savings in the weight of material that must be fabricated, transported to the building, lifted and installed is 14,400,000 pounds – or 7,200 tons.
Here is how we arrived at the findings in savings. Information on the embodied energy of various materials is from the Handbook of Energy Use For Building Construction prepared for the US Department of Energy by Elemental’s Carl Stein and the late Richard G. Stein:
EMBODIED ENERGY and WEIGHT OF MATERIAL COMPARISON
The analysis examines two alternative systems for replacing decorative, cast masonry units – thin shell glass fiber reinforced concrete and cast stone. Cast stone is used for the solid alternative because there is limited embodied energy data available glazed terra cotta, the original material and, at other buildings on the CCNY campus, cast stone has been used to replace deteriorated terra cotta. Note, however, that structural facing tile – a clay-bodied vitreous-glazed unit masonry product that is similar in composition to glazed terra cotta – has an embodied energy of about 860,000 Btu/ft3 as compared with that for precast concrete which is approximately 318,000 Btu/ ft3
The exterior reconstruction of Shepard Hall was the first large-scale use glass fiber reinforced concrete (GFRC) – thin shell units for historic preservation. This greatly reduced the quantity and weight of the replacement cladding as well as achieving a number of technical goals such as accommodation of thermal movement
Currently, more than 65,000 damaged terra cotta units have been replaced. When complete, the total will be approximately 72,000 units. As a frame of reference, GFRC (Glass Fiber Reinforced Concrete), with an average wall thickness of ¾” is compared with cast stone (precast concrete) having and average thickness on 6” including the complex molding and sculpture.
Embodied energy in precast concrete is 318,000 Btu/ ft3.
Average face area per unit is approximately 3 ft2
Volume of GFRC is 0.19 ft3
Embodied energy for GFRC is approximately 60,400 Btu/unit
Volume of cast stone is 1.50 ft3
Embodied energy for cast stone is approximately 477,000 Btu/unit
GFRC saves approximately 415,000 Btu/unit (average) when compared with cast stone.
Note: this does not include the embodied energy in the polymers and matakaolin that would be added to both materials, increasing the embodied energy savings for GFRC; however, it also does not include the Alkali Resistant glass fiber reinforcing (approximately 4½% of the total weight) which would apply only to the GFRC. If the embodied energy in the glass reinforcing is similar to that in conventional glass fiber, it would be about 6,500 Btu/pound or about 9,000 Btu per unit. In other words, even discounting the fact that there would be significantly more polymer and metakaolin in the cast stone, the addition of about 9,000 Btu of reinforcing results in the saving of about 415,000 Btu of concrete
The 72,000 units of replicated terra cotta for the entire project yield an embodied energy saving for GFRC of approximately 29,880,000,000 Btu (the equivalent of about 207,000 gallons or about 4,900 barrels of #6 oil) when compared with cast stone.
Using the embodied energy for structural facing tile to represent that of glazed terra cotta gives the following analysis:
Difference in volume of concrete between GFRC and terra cotta is approximately 1.0 ft3/unit. (The cellular construction of the terra cotta body allows it to made with somewhat less volume of material than with cast stone
Volume of GFRC is 0.19 ft3/unit
Embodied energy for GFRC is approximately 60,400 Btu/unit
Volume of terra cotta is 1.00 ft ft3/unit
Embodied energy for terra cotta is approximately 860,000 Btu/unit
GFRC saves approximately 800,000 Btu/unit (average) when compared with terra cotta
The 72,000 units of replicated terra cotta for the entire project yield an embodied energy saving for GFRC of approximately 57,600,000,000 Btu (the equivalent of about 400,000 gallons or about 9,500 barrels of #6 oil) when compared with terra cotta
Weight of Materials:
Although not directly convertible to energy quantities, it is also instructive to consider the weight of materials that must be handled in the reconstruction process. At 1.5 ft3/unit, the average cast stone unit weighs 225 pounds. At 0.19 ft3/unit, the average GFRC unit weighs 28 pounds. The weight saving for GFRC when compared with cast stone is +/- 200 lbs/unit.
For the 72,000 units of replicated terra cotta, the savings in the weight of material that must be fabricated, transported to the building, lifted and installed is 14,400,000 pounds – or 7,200 tons.
